Biological Effluent Treatment Plants (ETPs)
Sustainable & Customized Wastewater Treatment Solutions by Ventilair Engineers Pvt. Ltd.
At Ventilair Engineers Pvt. Ltd. (VEPL), we are committed to providing advanced and sustainable wastewater treatment solutions tailored to the needs of various industries and commercial sectors. With over 20 years of expertise in the field, we specialize in designing and manufacturing highly efficient Biological Effluent Treatment Plants (ETPs) that ensure safe, compliant, and eco-friendly discharge.

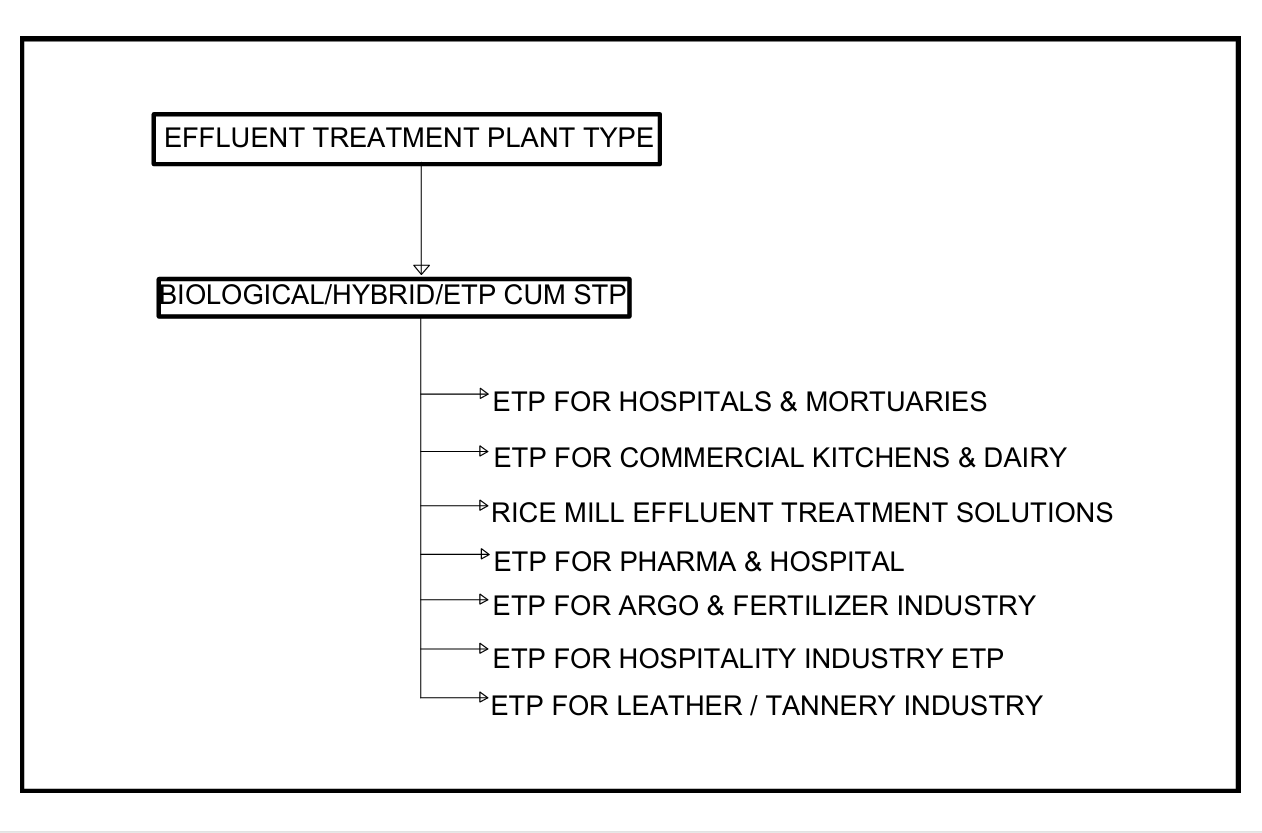

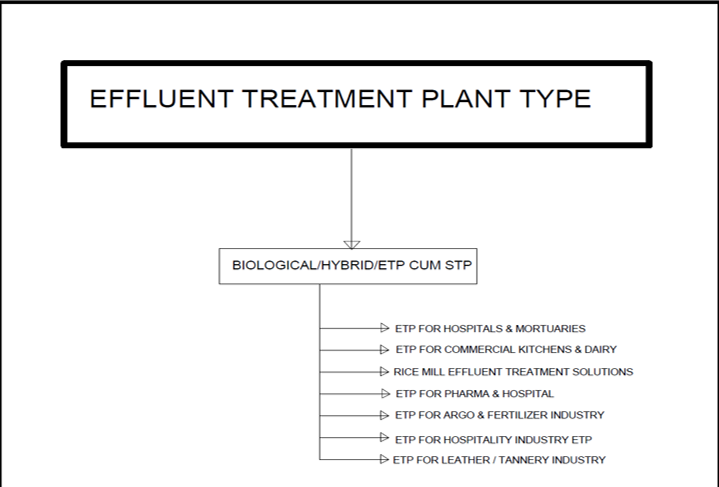

Types of Effluent Treatment Plants at VEPL
Customized Solutions Based on Wastewater Composition
Understanding that wastewater varies significantly in nature across industries, VEPL offers two main types of ETP systems:
🔹 1. Physico-Chemical ETP
Designed for industrial wastewater containing non-biodegradable pollutants, such as heavy metals, oils, chemicals, and suspended solids. These systems utilize processes like:
- Coagulation & Flocculation
- pH Correction
- Sedimentation & Filtration
Best suited for:
Textile | Electroplating | Paint | Chemical | Pharmaceutical industries
🔹 2. Biological ETP (HYBRID ETP – ETP cum STP)
For mixed wastewater containing biodegradable organic matter (from kitchens, toilets, etc.) commonly found in:
Hotels , Hospitals , Hostels , Commercial Complexes , Residential Societies
To meet these unique requirements, VEPL has developed the HYBRID ETP – an advanced treatment system that integrates both Effluent Treatment Plant (ETP) and Sewage Treatment Plant (STP) technologies.
This ETP cum STP efficiently handles high BOD and COD loads using biological processes (Aerobic, MBBR, SBR, etc.), while also addressing physical and chemical impurities.
Ideal for:
Commercial Establishments | Mixed-Use Facilities | Institutions | Urban Wastewater Applications

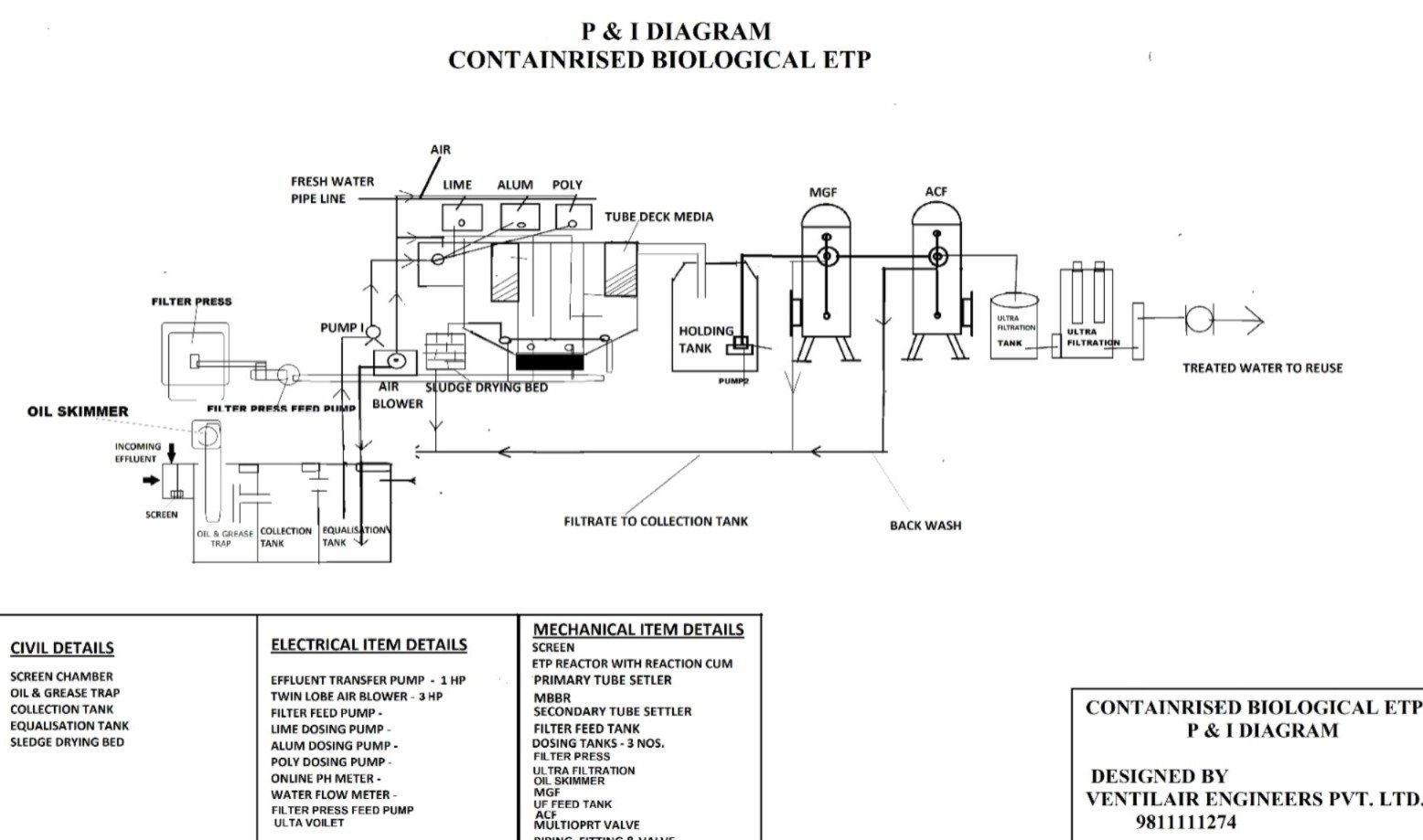

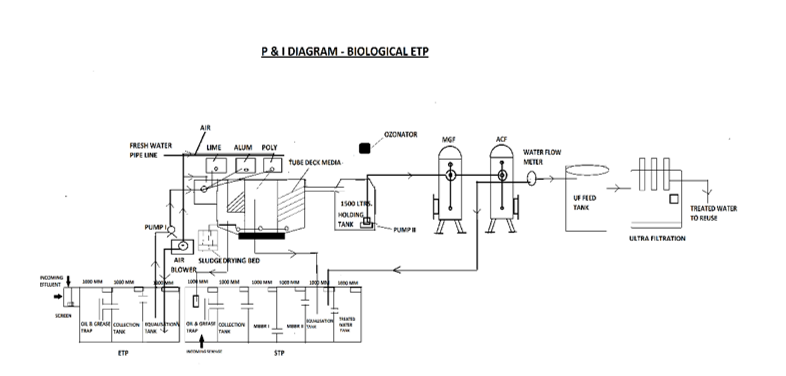

How Biological & Hybrid ETPs Work:
- Primary Treatment:
- Screening, Oil & Grease Removal, Equalization
- Secondary (Biological) Treatment:
- Activated Sludge Process (ASP)
- Moving Bed Biofilm Reactor (MBBR)
- Sequential Batch Reactor (SBR)
- Anaerobic Treatment (where applicable)
- Tertiary Treatment (Optional):
- Sand/Carbon Filtration, UV/Chlorine Disinfection
- Polishing for Reuse or Safe Discharge
Key Features of VEPL Biological & Hybrid ETPs:
- High Efficiency in Reducing BOD, COD & Organic Load
- Aerobic & Anaerobic Options Available
- Energy-efficient Aeration Systems
- Compact, Modular & Scalable Design
- Low Operational Cost & Minimal Sludge Generation
- Fully or Semi-Automated Operation
- Complies with CPCB / SPCB Discharge Standards
- Reusable Water Output for Gardening, Flushing, or Utility Use
Why Choose VEPL?
- 20+ Years of Experience in Wastewater Engineering
- Turnkey Solutions: Design, Manufacturing, Installation, Commissioning
- Customization Based on Wastewater Type & Industry
- Strong After-Sales Service, AMC & Technical Support
- Trusted by Clients Across India in Industrial, Commercial & Institutional Sectors
