Mobile Sewage Treatment Unit
Portable | Rapid Deployment | Complete On-Wheels Sewage Treatment

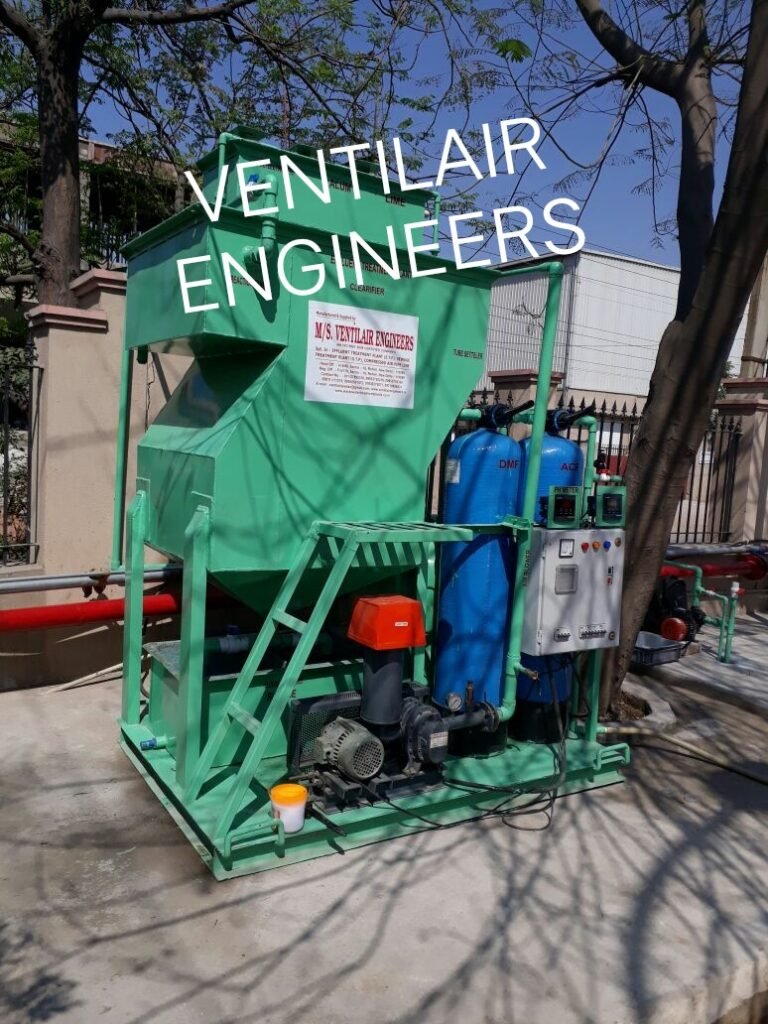

VEPL’s Mobile Sewage Treatment Unit (MSTU) is a fully integrated, on-wheel wastewater treatment plant designed for temporary, emergency, or remote applications. Mounted on a trailer or vehicle chassis, the MSTU offers on-site sewage treatment without the need for civil foundations or long installation timelines.
Built with modular biological and filtration technologies like MBBR or SBR, this solution delivers high-quality treated water suitable for discharge or reuse — even in remote or shifting project environments.
Product Specifications
Parameter | Specification |
Treatment Capacity | 5 KLD to 100 KLD (modular range) |
Technology Used | MBBR / SBR / Hybrid (as per application) |
Mobility | Truck-mounted / Trailer-mounted |
System Design | Plug & Play – Skid Mounted Inside Container |
Material of Construction | MS Epoxy-Coated / FRP / SS (custom options) |
Aeration System | Fine Bubble Diffused Aeration |
Filtration Options | PSF + ACF + UV/Chlorination |
Automation | Semi / Fully Automatic with PLC (optional) |
Power Requirement | 2 – 10 HP (based on capacity) |
Installation Time | <48 Hours |
Optional Add-ons | Ultrafiltration (UF), RO, Solar Power |
Inlet & Outlet Water Quality Parameters
Primary Treatment (Screening, Oil & Grit Removal, Equalization)
Parameter | Inlet Range | Outlet Range |
pH | 6.5 – 8.5 | 6.5 – 8.5 |
BOD | 250 – 400 mg/L | 150 – 200 mg/L |
COD | 500 – 700 mg/L | 300 – 450 mg/L |
TSS | 200 – 350 mg/L | 100 – 150 mg/L |
Oil & Grease | 20 – 50 mg/L | < 20 mg/L |
Secondary Treatment (Biological + Clarification)
Parameter | Inlet | Outlet |
BOD | 150 – 200 mg/L | < 30 mg/L |
COD | 300 – 450 mg/L | < 100 mg/L |
TSS | 100 – 150 mg/L | < 30 mg/L |
Ammonia (NH4) | 20 – 40 mg/L | < 10 mg/L |
Tertiary Treatment (Filtration + Disinfection)
Parameter | Inlet | Outlet |
BOD | < 30 mg/L | < 10 mg/L |
COD | < 100 mg/L | < 30 mg/L |
TSS | < 30 mg/L | < 5 mg/L |
Color/Odor | Mild | Removed |
Pathogens | Present | 99% Removed |
Final Stage: Ultrafiltration (Optional for Reuse)
Parameter | Inlet | Outlet |
BOD | < 10 mg/L | < 5 mg/L |
TSS | < 5 mg/L | < 1 mg/L |
Turbidity | < 5 NTU | < 1 NTU |
Pathogen Removal | Partial | 99.99% |
Water Quality | Treated Water | Reusable for Gardening, Toilet, Construction |
Applications
- Construction & Infrastructure Sites
- Disaster Relief & Emergency Camps
- Oil & Gas Fields
- Railways, Metro Projects
- Border Roads & Defence Camps
- Mining, Tunnels, and Remote Locations
- Events, Festivals & Pop-Up Installations
Key Features
- Rapid Deployment – Ready to operate within 24–48 hours
- Fully Mobile – Easily transportable between sites
- Self-Contained – All components pre-installed and tested
- Water Reuse Ready – Suitable for non-potable reuse
- Low Maintenance – Designed for minimal operator handling
