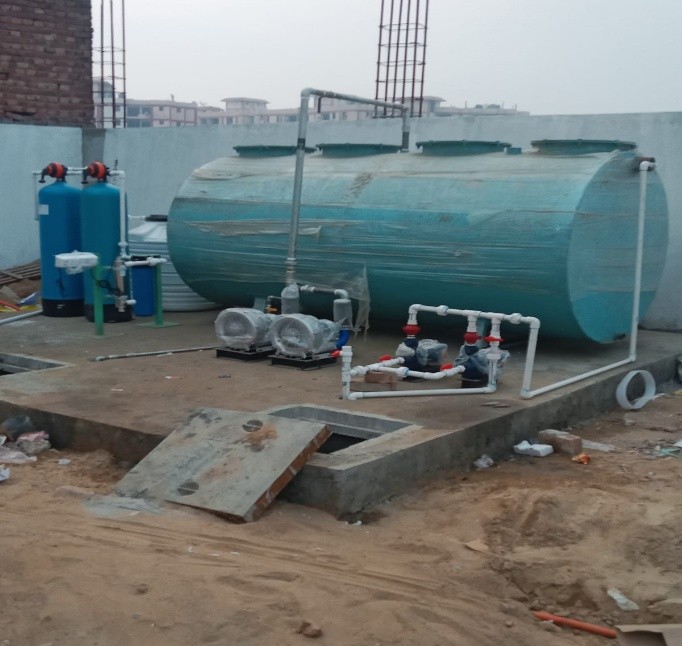

Unique Capsule Type STP
by Ventilair Engineers Pvt. Ltd. (VEPL) Compact | Complete | Custom-Engineered | CPCB-Compliant
Poduct Overview
VEPL’s exclusive capsule-type sewage treatment plant, designed for space-saving, over-the-ground installation. Unlike traditional capsule STPs, Unique Capsule Type comes with fully integrated accessories, premium branded components, and advanced treatment technologies — all pre-assembled and plug-and-play.
It features less civil work (only collection pit needed), is environmentally friendly, odourless, and ensures effluent output as per CPCB norms. Built using a robust MS/FRP structure with inside & outside FRP coating, this STP offers long-term durability and easy maintenance.
What Makes It Unique?
- Fully integrated accessories within capsule
- Use of Crompton Greaves Pumps and Blovac Air Blowers
- Alfa UV systems for effective disinfection
- Prince/Astral piping and fittings
- All remaining structural & process components by VEPL
- MS/FRP structure with dual-side FRP coating
- Optional Ultrafiltration for <10 BOD discharge
- Odour-free & hygienic design
- Plug-and-play system – ready in days, not weeks
System Configuration
Component | Brand/Details |
Pumps | Crompton Greaves (Standard) |
Air Blowers | Blovac (Standard) |
UV Disinfection | Alfa UV (Standard) |
Piping & Fittings | Prince / Astral (Standard) |
Filtration System | ACF + MGF (Standard) |
Tube Settler | Standard |
Filter Press | Optional (on demand) |
Ultrafiltration (UF) | Optional (for BOD <10 mg/l) |
Structure Material | MS/FRP with double FRP coating |
Other Mechanical Components | VEPL Fabricated |
Treatment Process Flow
Primary Treatment
- Screening & grit removal
- Equalization
- Tube settler for primary settling
Secondary Treatment (Biological)
- MBBR technology (Moving Bed Biofilm Reactor)
- Aeration with bio-media
- Secondary clarification
Tertiary Treatment
- Multigrade Filter (MGF)
- Activated Carbon Filter (ACF)
- UV Disinfection – Alfa UV
- Ultrafiltration (Optional) for high-quality reuse
Sludge Management
- Sludge thickening via tube settler
- Filter Press (Optional) for sludge dewatering
Technical Specifications
Parameter | Value / Details |
Capacity Range | 5 KLD – 100 KLD (custom-built) |
Technology | MBBR (Biological Process) |
BOD in Output | <20 mg/l (Standard), <10 mg/l (With UF) |
Output Quality | CPCB Norms Compliant |
Material of Construction | MS + FRP with inside/outside FRP coating |
Installation | Surface-mounted, over-the-ground |
Power Supply | Single/Three Phase (site-based) |
Automation | Semi/Fully Automated (custom) |
Footprint | Ultra-compact – fits tight spaces |
Ideal Applications
- Residential Societies
- Commercial Buildings
- Hotels & Resorts
- Schools & Colleges
- Hospitals
- Industrial Units
- Remote & Defence Sites
Environmental Benefits
- Minimal Civil Work (only collection pit required)
- No Odour – enclosed system with filtered air
- Low Power Consumption – energy-efficient blowers & pumps
- Recyclable Treated Water – suitable for gardening, flushing, etc.
- CPCB Compliant Effluent – ready for discharge or reuse
Customization Options
- Filter press for enhanced sludge handling
- Ultrafiltration for advanced polishing (BOD <10 mg/l)
- SCADA/Remote Monitoring (on demand)
