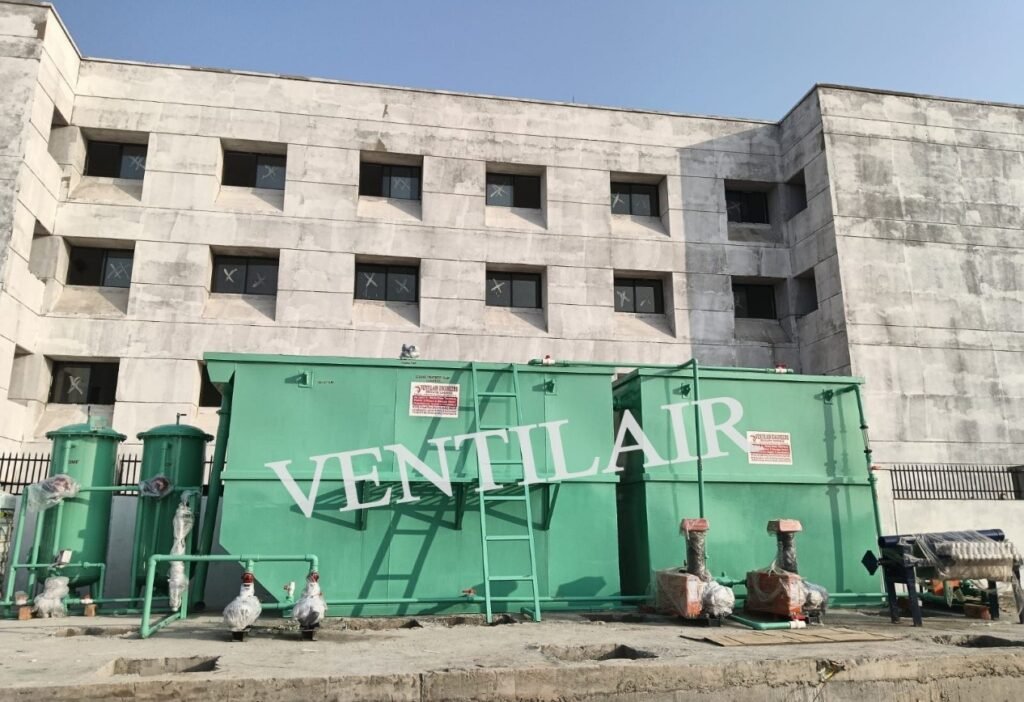

VEPL – Modular STP for Commercial Buildings
(Eco-Friendly, Scalable & Natural Wastewater Recycling System with Reed Bed/Plantation STP Option)
Ventilair Engineers Pvt. Ltd. (VEPL) presents a Modular Sewage Treatment Plant specifically designed for commercial buildings, including offices, shopping complexes, business parks, hotels, and multiplexes. This system is available in flexible module-based units, allowing for easy installation, scalability, and minimal footprint.
What makes this VEPL STP unique is the option to integrate a reed bed or plantation-based root zone system — enabling eco-friendly secondary or tertiary treatment, low power consumption, and 90% water reuse with zero discharge. Ideal for green-certified buildings, these modular STPs are built to CPCB/SPCB compliance and deliver reliable performance with low O&M cost.
Technical Specifications
Feature | Specification |
Design | Modular Pre-Fabricated / RCC / FRP / MS Skid-Mounted |
Technology | Primary + MBBR / SBR + Reed Bed / Plantation Tertiary Option |
Capacity Range | 5 KLD to 200 KLD (Scalable with Add-On Modules) |
Disinfection | UV / Chlorine (Optional) |
Sludge Handling | Filter Press / Sludge Drying Bed |
Final Polishing (Optional) | Ultra Filtration (UF) or Slow Sand + Activated Carbon Filter |
Reuse Applications | Flushing, Landscaping, Gardening, HVAC Makeup, Floor Washing |
Odor Control | Activated Carbon Ventilation + Aerobic Root Zones |
Construction Type | Overground or Partially Underground (as per site) |
Automation | Manual / Semi / Fully Automatic |
Compliance | CPCB / State Pollution Control Board / LEED & GRIHA ready |
Stage-Wise Treatment and Parameters
- Primary Treatment
(Screening → Settling → Oil & Grease Trap → Equalization)
Parameter | Raw Sewage (Inlet) | After Primary Treatment |
BOD | 250–400 mg/L | 150–200 mg/L |
COD | 500–700 mg/L | 300–450 mg/L |
TSS | 200–350 mg/L | 100–150 mg/L |
pH | 6.5 – 8.5 | 6.5 – 8.5 |
- Secondary Treatment (MBBR / Reed Bed / Plantation System)
(Biological Treatment via Media-Based Reactor + Natural Root Zone)
Parameter | After Primary | After Secondary Treatment (Reed Bed) |
BOD | 150–200 mg/L | < 20–30 mg/L |
COD | 300–450 mg/L | < 80–100 mg/L |
TSS | 100–150 mg/L | < 20–30 mg/L |
Ammonia | 10–25 mg/L | < 10 mg/L |
- Tertiary Treatment
(Multi Grade Filter + Activated Carbon Filter + UV/Chlorine)
Parameter | After Secondary | After Tertiary Treatment |
BOD | < 30 mg/L | < 10 mg/L |
COD | < 100 mg/L | < 30 mg/L |
TSS | < 30 mg/L | < 5 mg/L |
Pathogens | Moderate | > 99% Removal |
Odor & Color | Mild | Odorless & Colorless |
- 4. Optional Polishing (Ultrafiltration / Slow Sand + Reed Bed)
Parameter | After Tertiary | After UF / Final Polishing |
BOD | < 10 mg/L | < 5 mg/L |
TSS | < 5 mg/L | < 1 mg/L |
Turbidity | < 5 NTU | < 1 NTU |
Pathogen Count | 99% | Up to 99.99% Removal |
Water Reuse | Safe for Non-Potable Use – Flushing, Irrigation, HVAC |
Key Advantages of VEPL Modular STP
- Reed Bed/Plantation Option – Naturally treats and polishes water
- Modular Design – Expandable with future demand
- Overground or Underground – As per space/site availability
- Compact Footprint – Ideal for urban buildings and campuses
- Low Power, Low Sludge, Low Maintenance
- Green Building Compatible – Earn IGBC/LEED points
- 100% Water Reuse – Zero Liquid Discharge Compliant
Ideal for Commercial Use In:
- Corporate Offices & Tech Parks
- Hotels, Resorts & Convention Centres
- Shopping Malls & Multiplexes
- Hospitals & Health Clinics
- Large Hostels, Campuses & Institutions
- Co-Working Spaces & Business Hubs
Why VEPL?
- 1500+ ETP/STP Installations across India
- 20+ Years in Wastewater Engineering
- Experts in Reed Bed, MBBR, UF, ZLD, Plantation STPs
- Turnkey Delivery – Civil, Mechanical, Electrical & AMC
- 100% Tested and Certified Performance
